The Echolink system
is active with its new modifications.
Raspberry pI and I/O on left with Signal Link audio and USB I/O on right
The Echolink radio system has relied on a VOX (voice operated transmit) connection for both transmit and receive
through the echolink interface since its installation.
This would result in some "soft spoken" stations being dropped from activating the internet side resulting in the echolink station hearing nothing and some return echolink transmissions not triggering the repeater.
With the addition of actual "wired" carrier sense and PTT circuits,
the interactivity with echolink should be more in line with an ordinary QSO through the repeater.
There are some minor adjustments to be finished such as hang times and audio levels.
I hope to have those finished in the next few days!

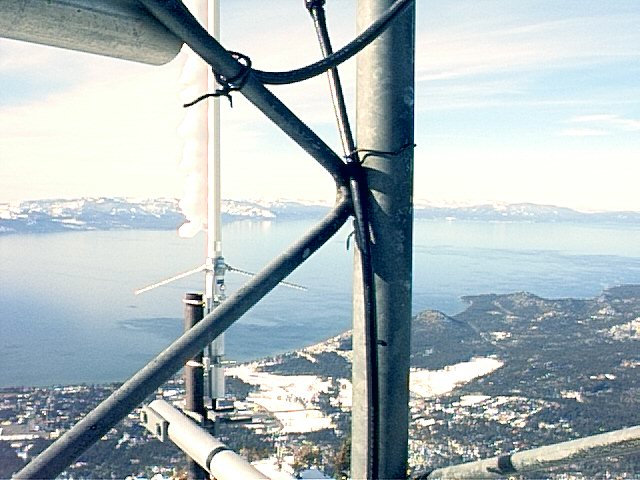

The 147.240 and DMR 442.475 antenna is a Diamond X50a (far left tower).
The tri-band antenna which is primary for our 224.020 repeater was also replaced after 15 plus years (far right tower).
Notice the additional "ARM" extending from the tower to support each antenna.
That's the "Secret" for their "Longevity" on the tower at 9700 feet!
Additional Installs and Maintenance for East Peak
1) Add a PL of 123Hz to the 224.020 repeater
2) Install a "Modified" Hot Spot for the DMR internet access.
Currently, if the Hot spot looses the 4G signal from a site overload, a reset requires an on-site visit.
The modified MiFi Hot Spot will allow a remote reset through the site controller.
(I don't have to run up to the site and press the buttons to restore the DMR network!)
