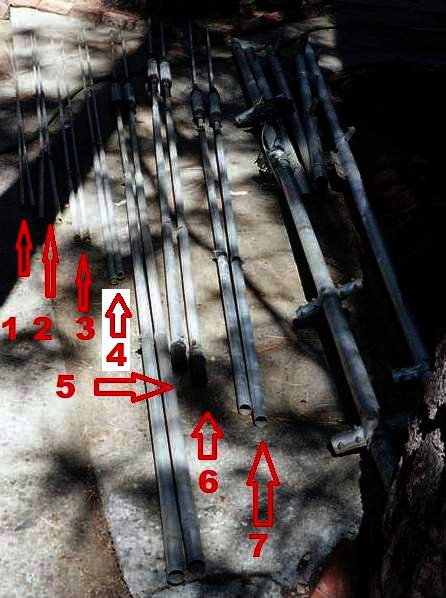

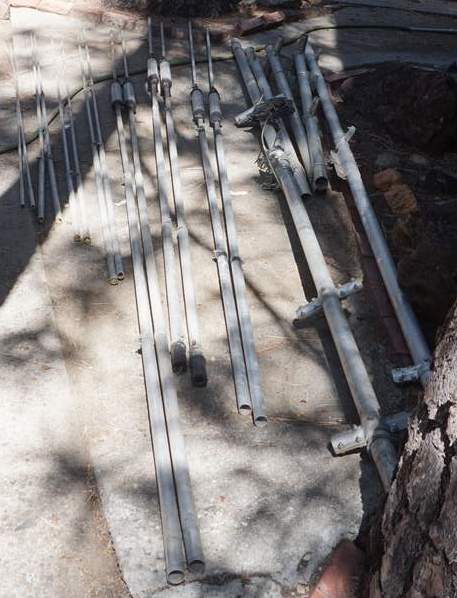

I believe this is a 7 elements HF Beam !



It's been under my porch for 30 years! I can't locate any paperwork and an internet search is also negative.

SO, you can have all this hardware and put together SOME KIND of HF Beam.
My guess is it's 40 through 10 meters.
I probably removed it from a hams home and kept it with the dream of a "Powerhouse" HF station.

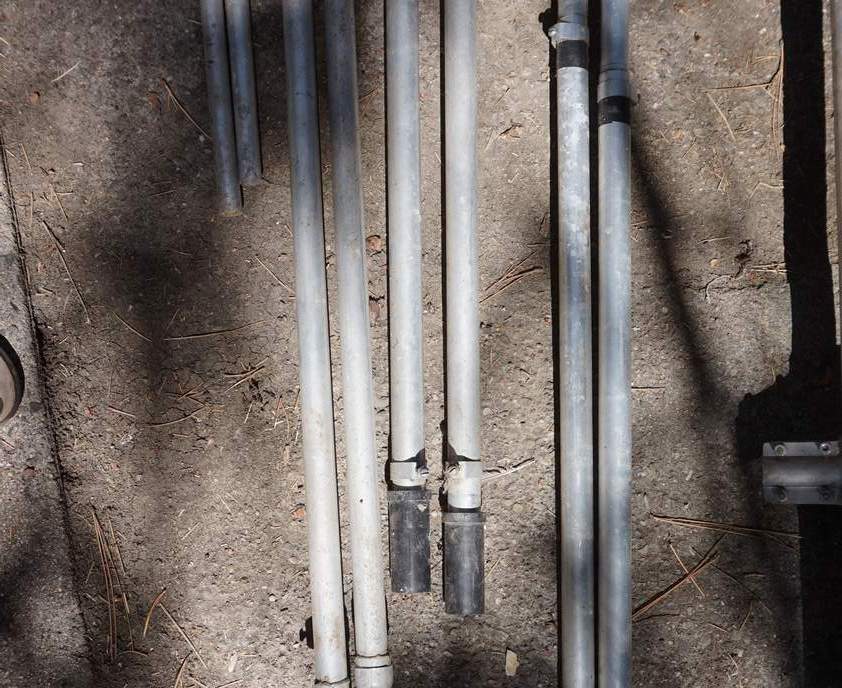

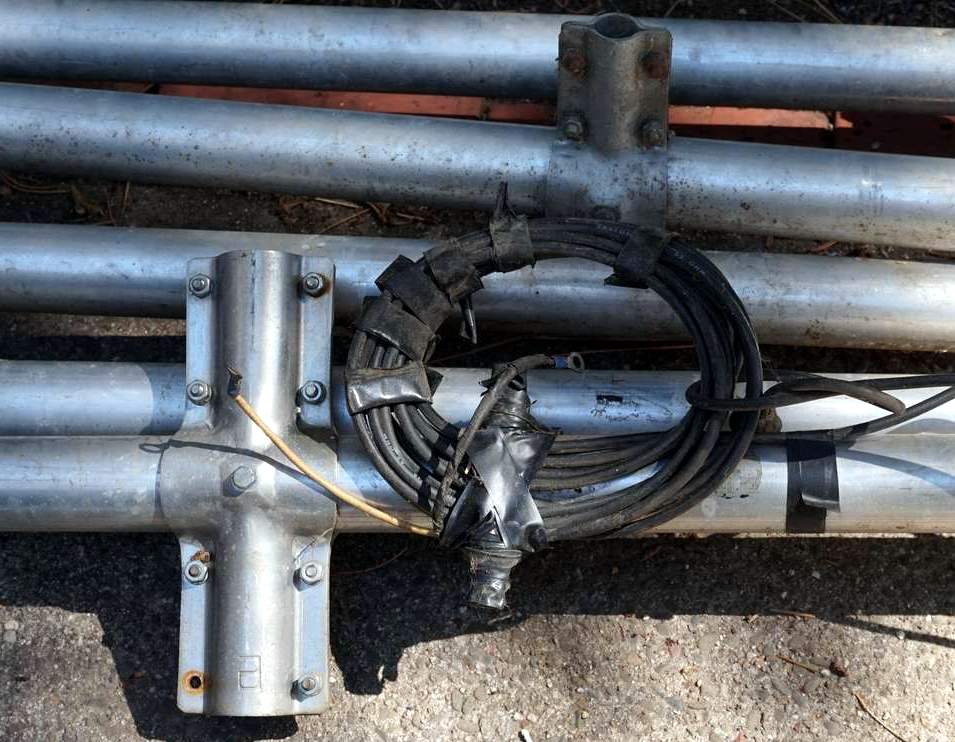

Driver elements      Coax Balun with connector lugs

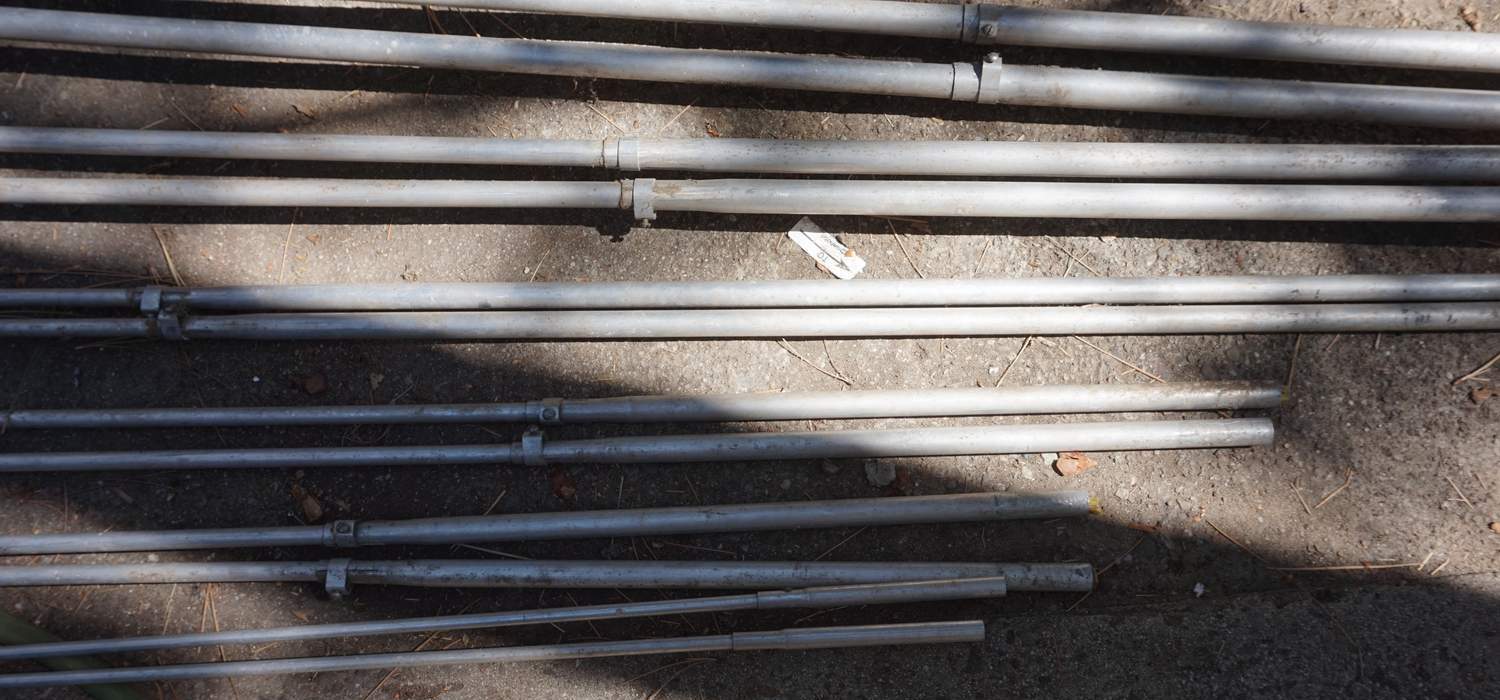

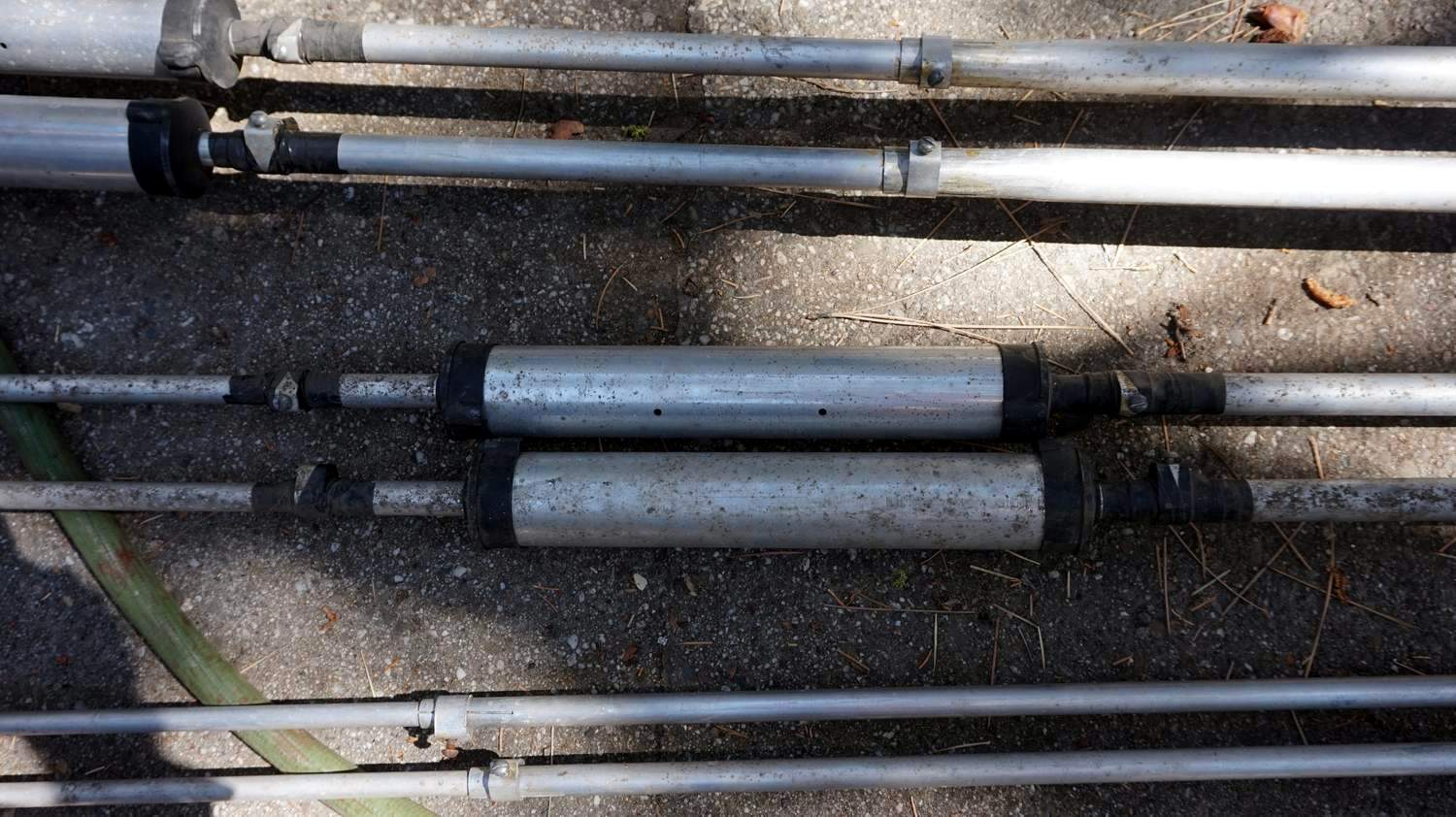

TRAPS               Non-trap elements

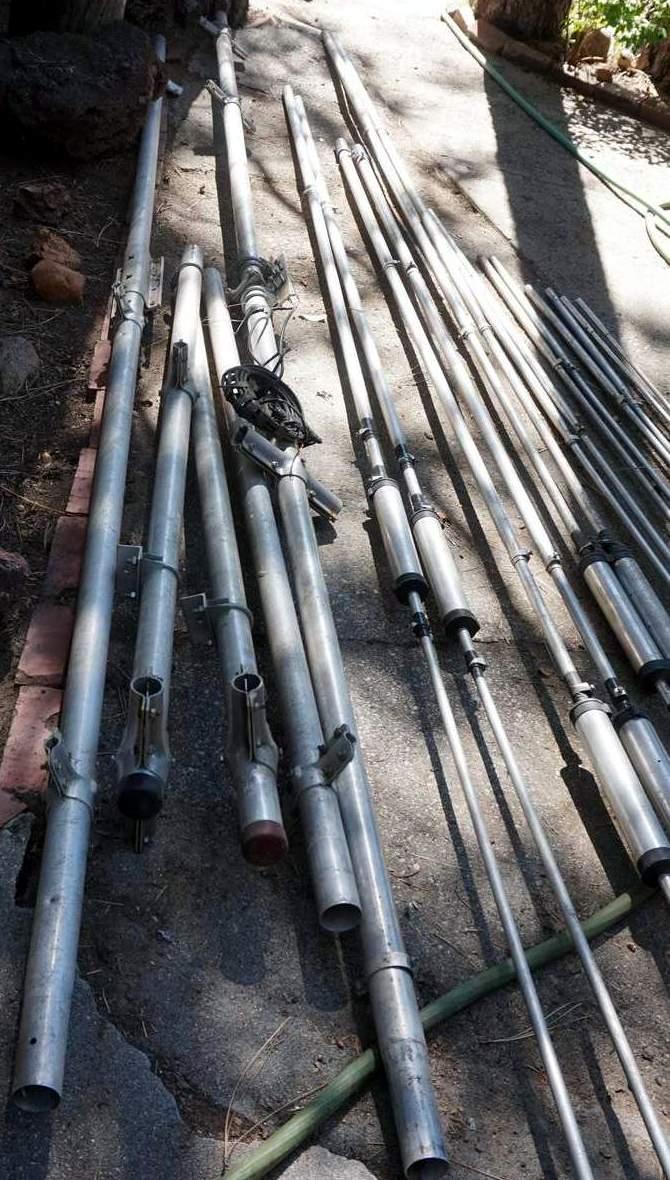

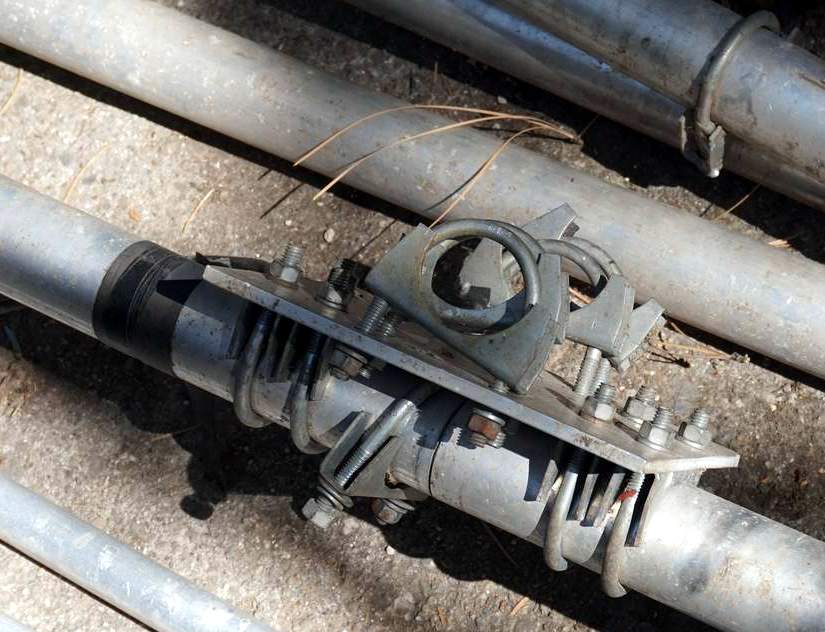

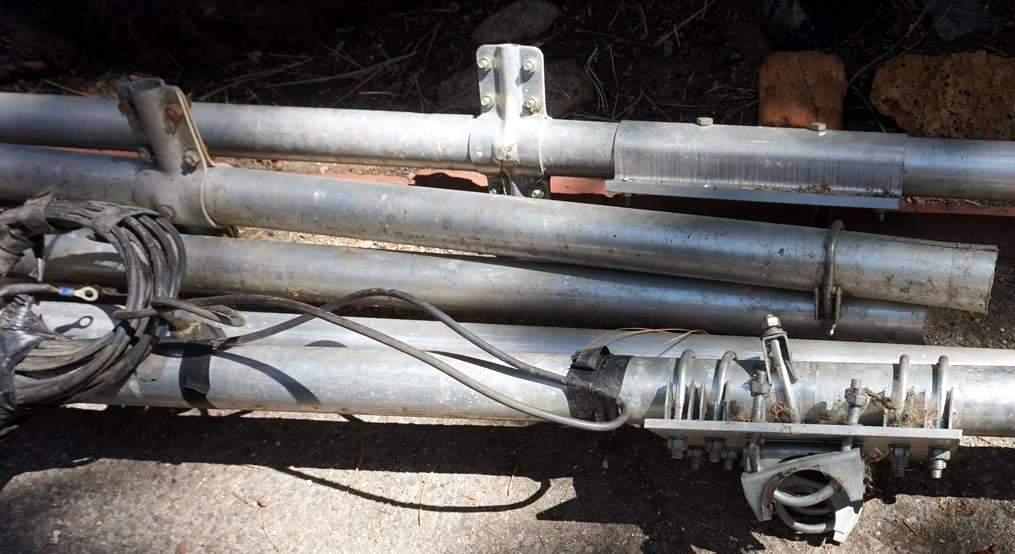

BOOMS               Boom Mount

Boom Mount               another view

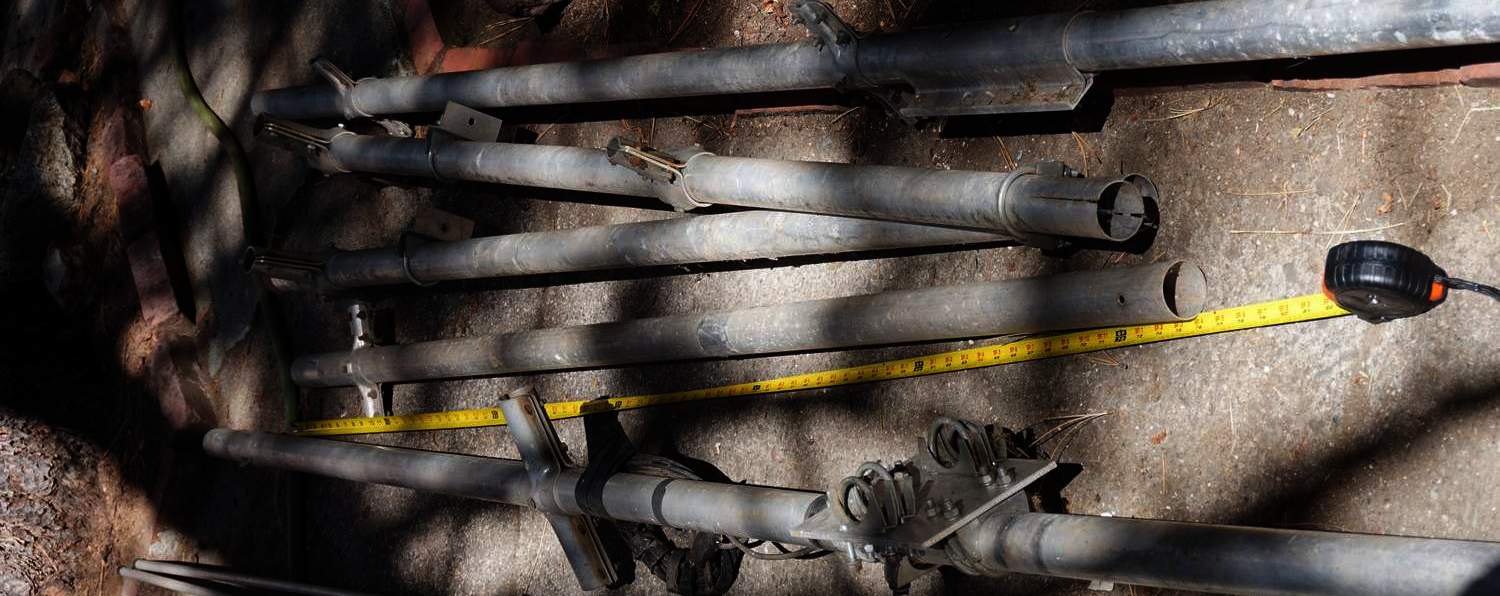

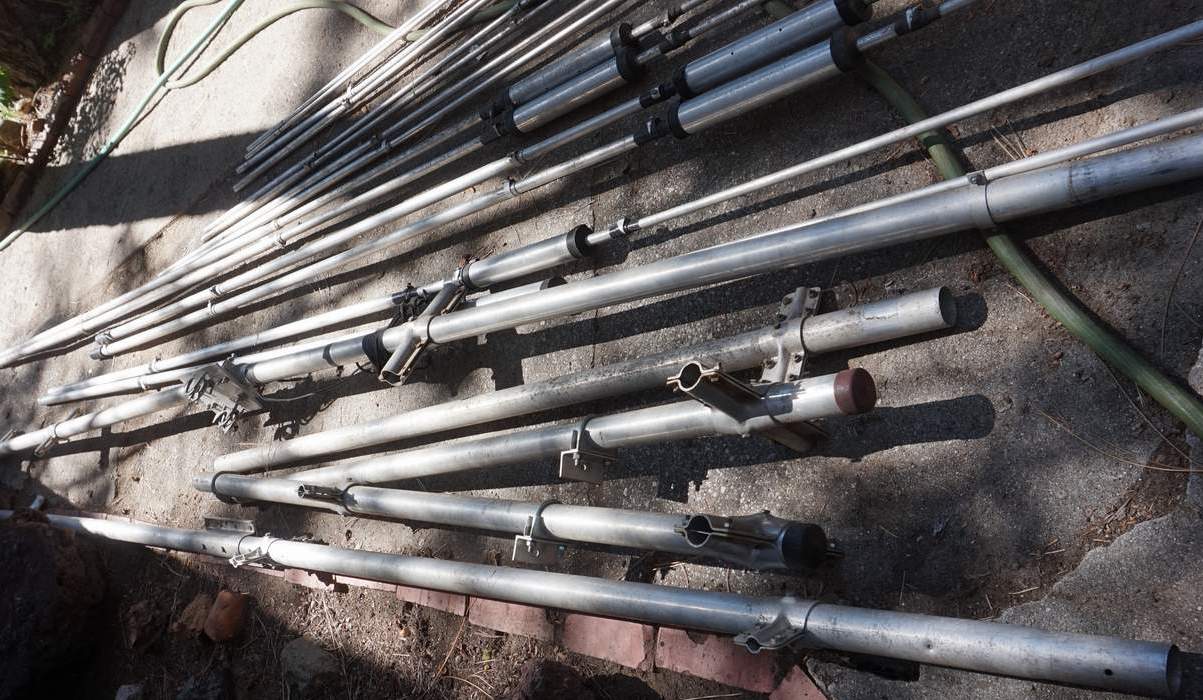

Primary Boom slight less 14'               Secondary Booms

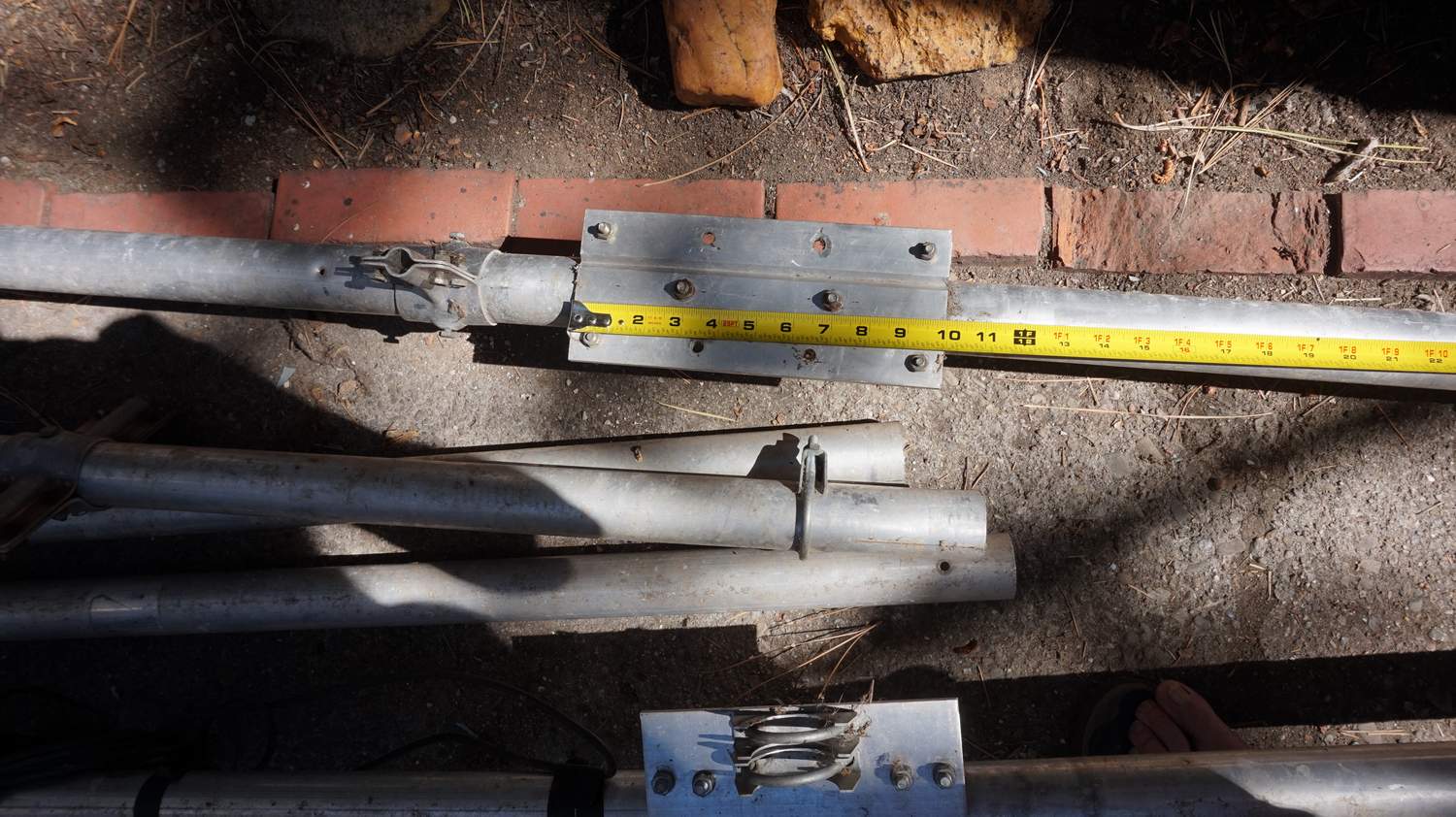

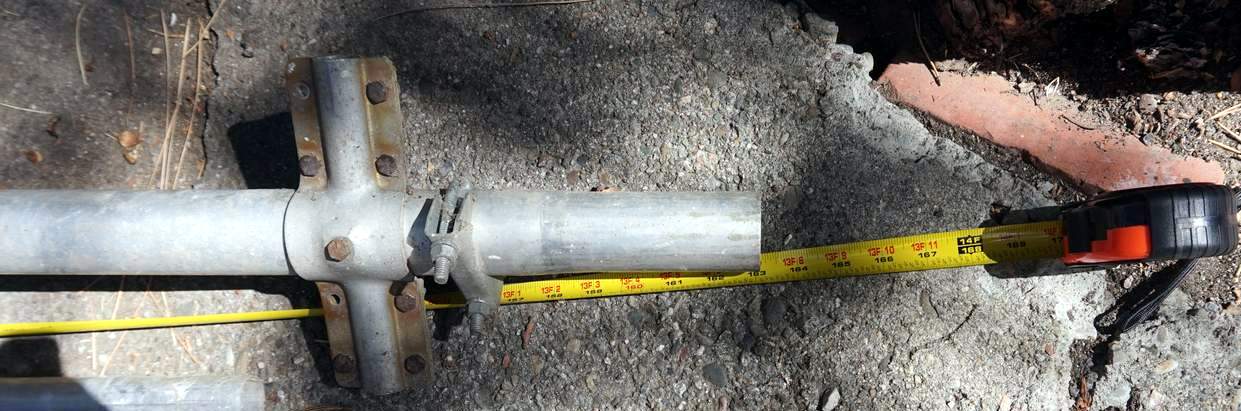

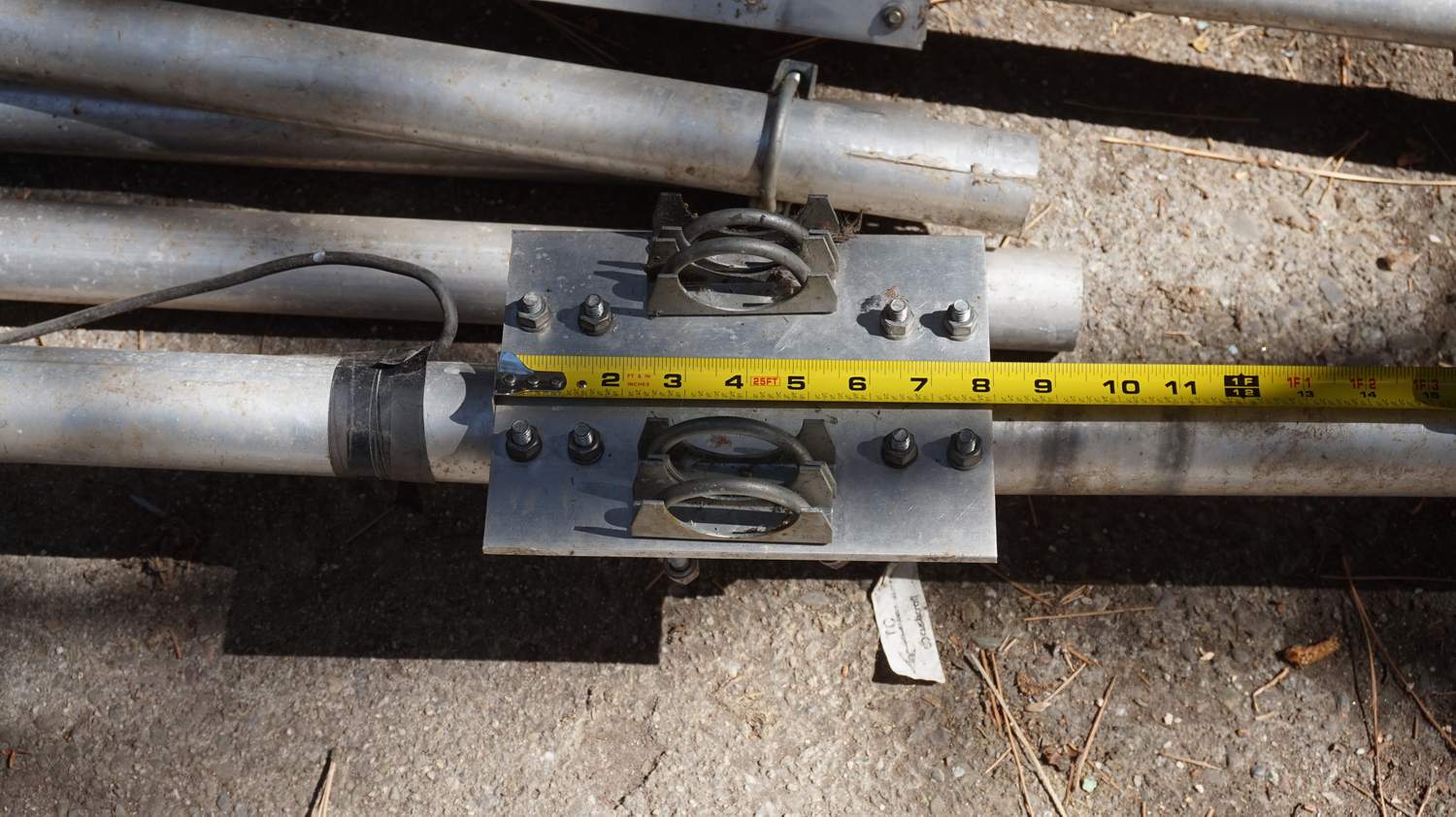

Mount dimensions               2nd? Mount

I believe there are boom sections from another antenna so hopefully a complete boom is all here.

Contact: WA6EWV
